01 Product Introduction
The all-round conductive rubber is a material made by compounding through a series of complex processing techniques such as mixing and vulcanization. It uses ordinary silicone rubber as the base material and is mixed with conductive powder with excellent electrical conductivity. It perfectly combines the flexibility of the silicone rubber itself with the high electrical conductivity of the conductive particles. It can not only meet the requirements of electrical grounding and EMI shielding, but also achieve environmental sealing. Among them, the types of conductive particles include silver-plated aluminum, silver-plated glass, silver-plated nickel, silver-plated copper, nickel-plated aluminum, and nickel-coated graphite, etc. The elastomer base material is mainly silicone rubber or fluorosilicone rubber.

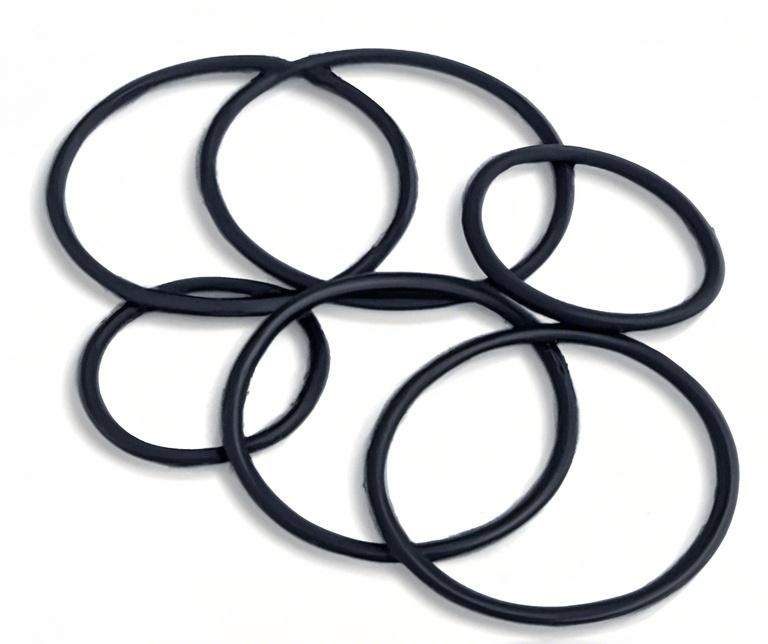

The filler of CE5003 is nickel-coated graphite, which has a cost advantage and is extremely lightweight. It is suitable for applications in commercial-grade and consumer electronics products.
① Ultra-low resistance and superior shielding performance
② The environmental sealing performance can reach up to IP68
③ It has a wide temperature application range and can maintain operation even at extreme temperatures – usually from -55°C to +170°C, and can also meet the requirements of special temperature applications
④ Excellent mechanical properties, softness, and long-term durability
⑤ Sheet materials, die-cut products, compression-molded products, extruded strips or profiles can be provided。

03、Technical Parameters
